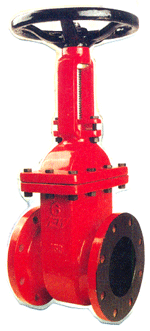

Gate Valve



These valves are designed to provide minimum turbulence & resistance to flow when in fully open position. Sufficiently long guide ribs in the body along with accurately machined wedge & guide slots ensure accurate control & alignment of wedge while operating. Wedges are generally solid type & are accurately machined, precisely aligned & perfectly lapped with renewable seats in Carbon Steel & integral seats in Stainless Steel. All the valves have back seat arrangement as an additional sealing under full working pressure which facilitated replacement of packing with valves under fully open condition.

Optional Features

* Flexible Wedge.
* Split Wedge
* Non rising stem
* Renewable seat ring & back seat.



Materials of Construction

  WCB CF8 CF8M
1. BODY WCB CF8 CF8M
2. BONNET WCB CF8 CF8M
3. WEDGEDCE CA 15/WCB+13% Cr CF8 CF8M
4. SEAT CA 15/STELLITE-8 CF8 CF8M
5. STEM SS410 SS304 SS316
6. STEM NUT GUN METAL SS304 SS316
7. BACKSEAT SS410 SS304 SS316
8. GLAND WCB CF8 CF8M
9. PACKINGS GRAPHITED ASBESTOS P.T.F.E. P.T.F.E.
10. BOLTS A 193-B7 B8 B8M
11. NUTS A 194-2H A 194-B A 194-8M
12. HANDWHEEL CI CI  CI
Also available Zero-Leak Version



TEST PRESSURES

TEST Pr. 150 300 TESTING MEDIUM
SHELL psig 450 1125

 KEROSENE
or
WATER



BAR 30 77
BACKSEAT psig 325 835
BAR 22 57
SEAT LEAK psig 325 825
BAR 22 57

WATER

SEAT LEAK Test Provided on request

Dimension

ASA 150 # (inches)

BORE DIA F to F F DIA F THIC P.C.D. RFD N of H H DIA
1 5 4 1/4 7/16 3 1/8 2 4 5/8
1 1/2 6 1/2 5 9/16 3 7/8 2 7/8 4 5/8
2 7 6 5/8 4 3/4 3 5/8 4 3/4
3 8 7 1/2 3/4 6 5 4 3/4
4 9 9 15/16 7 1/2 6 3/16 8 3/4
5 10 10 15/16 8 1/2 7 5/16 /8 7/8
6 10 1/2 11 1 9 1/2 8 1/2 8 7/8
8 11 1/2 13 1/2 1 1/8 11 3/4 10 5/8 8 7/8
The specification and data in this leaflet are as accurate as possible improvements and modifications from to time may change in design and dimensions.
